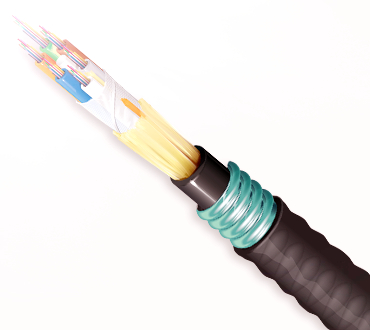

Fiber Optic Loose Tube Cable

Fiber Optic Loose Tube Cable

SINO OPTIC’s loose tube fiber optic cables are ideal for both outdoor and outdoor applications, including use in conduit, direct burial, lashed aerial, trunking.

Their designs utilize 250µm fibers in both central & multi loose tube constructions ranging in optical fiber counts from 2 to 288.

Our standard offerings include plenum, riser, and outside plant ratings with the option of aluminium interlocked armor or steel corrugated armor.

Category:

Description

Specifications



Glass Type

OM1 -

62.5/125 Multi Mode

OM2 - 50/125

Multi Mode

OM3 - 50/125

Multi Mode

OM4 - 50/125

Multi Mode

OS2 - ​​ ​​ ​​ ​​ ​​ ​​ ​​ ​​​​ Single Mode

Jacket + Sub-unit Color

Orange

Orange

Aqua

Erika Violet

Yellow

Operating Wavelength (nm)

850/1300

850/1300

850/1300

850/1300

1310/1550

Min. OFL​​ Bandwidth (MHz-km)



200/500

500/500

1500/500

3500/500

-

Min. Laser Bandwidth​​ (MHz-km)

220/-

950/-

2000/-

4700/-

-

Max Attenuation (dB/km)

3.5/1.25

3.5/1.5

3.25/1.2

3.0/1.2

0.5/0.5

1 Gigabit Ethernet Min. Link Length (meters)

275/550

600/600

1000/550

1100/550

5000/-

10 Gigabit Ethernet Min. Link Length (meters)

33/-

82/-

300/-

400/-

10,000/40,000



Chromatogram





Features

  • 250µm Fibers: Facilitate mass fusion splicing

  • Single & Multi-Unit Designs: Provide space savings & easier installations

  • All-Dielectric Designs: Eliminate the need for grounding

  • Offered in Interlocking & Steel Corrugated Armor: Removes the need for conduit & increases crush resistance



Applications

  • Intra-building & inter-building backbones

  • Lashed aerial

  • Direct burial

  • Harsh environments
