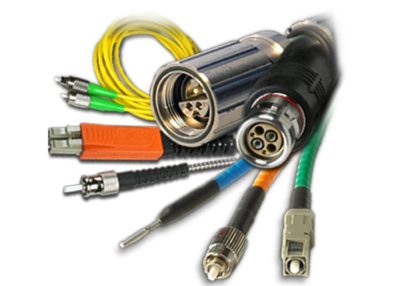

Fiber Optic Patch Cables

SINO OPTIC is a leading China manufacturer of fiber optic patch cables in the telecommunications industry, meeting or exceeding many of the industry standard requirements for optical transmission loss, reflectance, visual end face specifications, and geometry. Our fiber optic cable assemblies are available to provide wide variety of fiber optic patch cords/pigtails.

Types of cables include: single mode (OS1, and OS2) and multimode (OM1, OM2, OM3, OM4, and OM5), indoor and outdoor, standard and bend insensitive.

Type of connectors include: single mode and multimode, LC, SC, FC, ST, MU, FDDI, MTRJ, E2000, and MPO/MTP

SINO OPTIC is able to manufacture any custom fiber optic patch cables based on the variety of fiber counts, cable types, lengths and connector combinations available.

We test each of our fiber optic patch cables before packing to meet stringent industry standards.

We offer custom fiber optic assemblies at the most cost effective price with guaranteed quality assurance.

Please do not hesitate to contact us if you have any further questions.

Category:

Description

Specifications

  • Insertion Loss:

≤ 0.15dB Typical Single mode (UPC)

≤ 0.25dB Typical Single mode (APC)

≤ 0.35dB Typical Multimode (PC)



  • Return Loss:

≥ -55dB Single mode (UPC)

≥ -65dB​​ Single mode (APC)



  • Mechanical Durability:

1000 Mating Cycles



  • Operating Temperature:

-40°C to +75°C



Features

  • Low Insertion Loss

  • High Return Loss

  • High Reliability and Stability

  • Available for non-standard customization



Applications

  • FTTX, PON,​​ CATV, LAN, WAN​​

  • Data Centers​​

  • Long Haul communications

  • Telecommunications

  • Wireless



Compliances​​

  • IEC 60874

  • Telcordia-GR-326-CORE

  • RoHS
