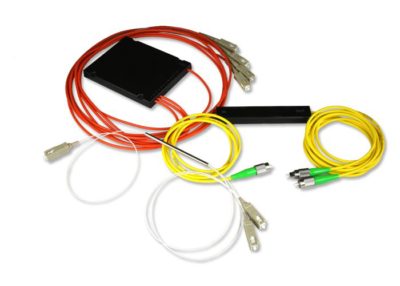

Fiber Optic Splitters

Fiber Optic Splitters

SINO OPTIC’s Fiber Optic Splitters are designed with precise alignment of optical fibers to provide equal optical power from input ports to multiple output ports.

With a wide operating wavelength range, high optical performance and reliability, SINO OPTIC’s PLC splitters are suitable for using in PON networks to realize perfect optical signal power splitting.

SINO OPTIC’s PLC Splitters are available in different configurations, with SC-APC and LC-APC Adapters.

Bend-insensitive, G.657A LSZH singlemode optical fiber is used to provide low bending loss and protection against accidental tight bends down to 7.5 mm radius.

All our PLC Optical Splitters are factory tested with a detailed test report in packing case.

Category:

Description

Specifications

Parameter

1x2

1x4

1x8

1x16

1x32

1x64

2x2

2x4

2x8

2x16

2x32

2x64

Premium Grade

Insertion Loss at 23℃

Max

dB

4

7

10.4

13.5

16.8

20.5

4

7.3

10.6

13.9

17.2

20.8

Channel​​ Uniformity

0.6

0.8

1

1.4

1.6

2

0.8

1

1.2

1.5

1.8

2

PDL

0.2

0.3

0.3

0.3

0.3

0.5

0.2

0.3

0.3

0.3

0.3

0.5

Standard Grade

Insertion Loss at 23℃

Max

dB

4.2

7.3

10.6

13.8

17.1

20.8

4.2

7.5

11

14.5

17.5

21

Channel Uniformity

0.6

0.8

1

1.4

1.6

2

0.8

1

1.2

1.5

1.8

2

PDL

0.2

0.3

0.3

0.3

0.3

0.5

0.2

0.3

0.3

0.3

0.3

0.5

Operating wavelength

nm

1260～1650

Return Loss

Min

dB

55(P Grade) / 50(S Grade)

Directivity

55

Operating Temperature

℃

-40～+85

Fiber Type

-

ITU G.657A Or Customization



Features

  • Reliable Performance

  • Rugged Construction

  • Easy Identification

  • Speedy Installation



Applications

  • Fiber optic equipments & systems

  • CATV networks

  • Data communications

  • Passive optical newworks (ATM, WDM, Ethernet)



Compliances​​

  • Telcordia GR-1209 and GR-1221
